| Category: | Spare Parts & Accessories |
| Application: | Inverter / UPS / Motor Drive |
| Voltage: | 600V – 1700V |
| Current: | 50A – 600A |
| Type: | Module / TO-247 |

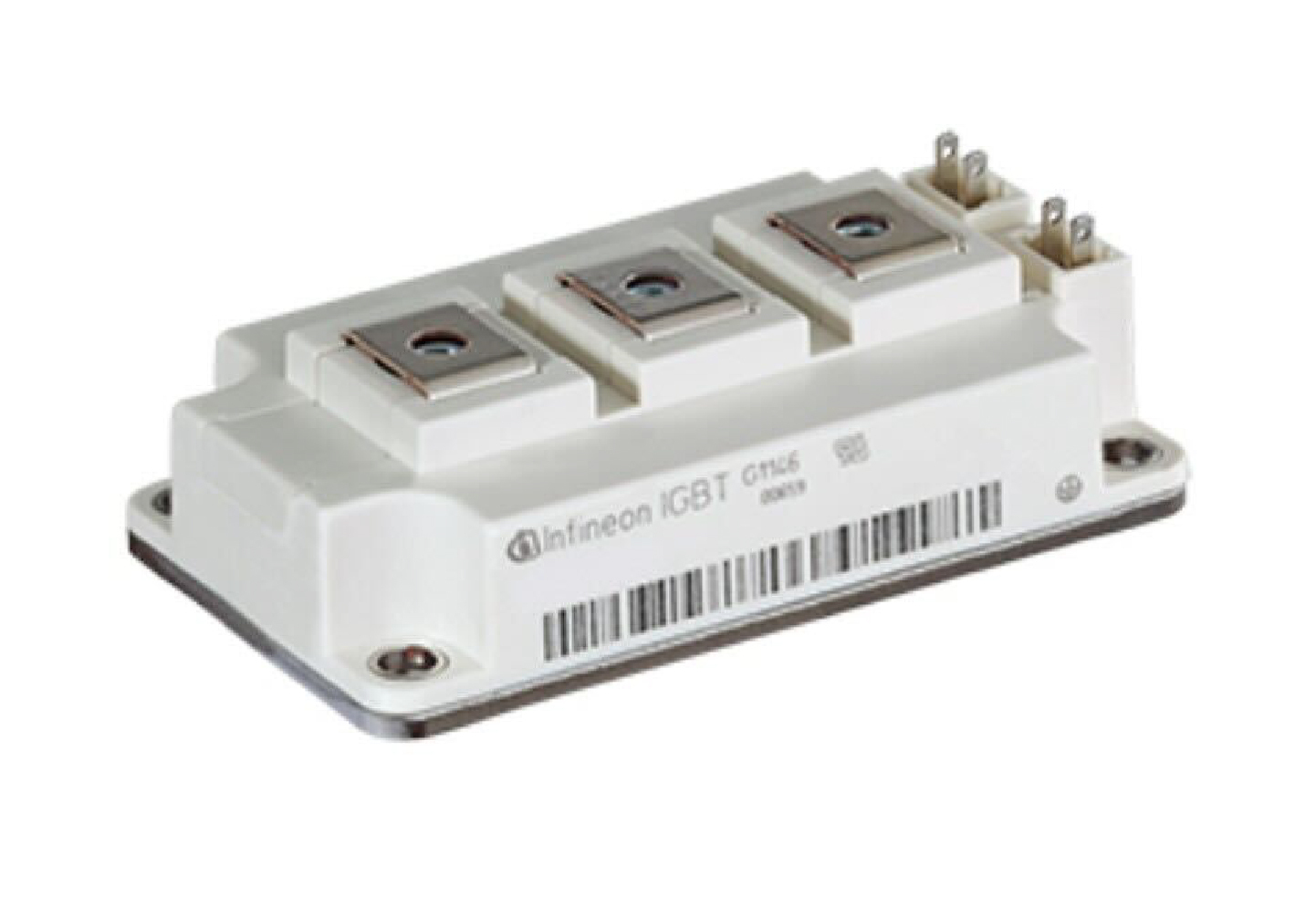

The IGBT (Insulated Gate Bipolar Transistor) is a widely used semiconductor device that combines the advantages of both MOSFETs (Metal-Oxide-Semiconductor Field-Effect Transistors) and BJTs (Bipolar Junction Transistors), offering both high switching speed and high current-handling capability. It plays a vital role in modern power electronics, providing efficient control of power in various applications such as motor drives, renewable energy systems, industrial machinery, HVAC systems, electric vehicles, and more.
Due to its excellent switching characteristics, efficiency, and reliability, the IGBT is used for controlling and switching high-voltage and high-current loads with low switching losses. It is an essential component in power conversion systems where efficient power handling is crucial, such as in inverters, DC-AC converters, and electric drives.
-Combination of MOSFET and BJT Characteristics:
MOSFET characteristics: The IGBT has a gate similar to that of a MOSFET, which allows it to be controlled by a voltage rather than a current, offering easy control and high input impedance.
BJT characteristics: The IGBT has the current-carrying capability and high saturation voltage of a BJT, making it ideal for handling high-power applications with low conduction losses.
-High Efficiency:
One of the key advantages of the IGBT is its ability to switch large amounts of electrical power with minimal energy loss. It can operate at high frequencies with low switching losses, making it efficient in applications requiring high power conversion, such as AC-DC conversion, DC-AC inverters, and motor control.
-High Voltage and Current Handling:
IGBTs can handle high voltages (from a few hundred volts to several kilovolts) and high currents (from several amperes to hundreds of amperes) with low on-state voltage drops. This makes them suitable for heavy-duty industrial applications where high power is required.
-Low Switching Losses:
The IGBT’s low switching losses enable it to operate at high frequencies, reducing the size of passive components in power electronics systems. This helps minimize the overall size and cost of power electronics circuits, making IGBTs essential in compact, high-efficiency power conversion systems.
-Thermal Stability:
IGBTs exhibit good thermal stability, meaning they can function at elevated temperatures without significant performance degradation. This makes them reliable in demanding applications where temperature fluctuations can occur.
-Ease of Drive:
The gate drive for IGBTs is similar to MOSFETs, meaning they can be easily controlled with low-voltage signals. This simplifies circuit design and reduces the complexity of control systems compared to other power transistors like BJTs, which require more complex driving circuits.
-Fast Switching Speed:
Though not as fast as MOSFETs in certain applications, IGBTs still provide fast switching capabilities that are essential for high-frequency power applications. They are well-suited for systems requiring precise control over power flow, such as variable-frequency drives (VFDs) and inverters.
-Motor Control:
Industrial motor drives, such as those used in pumps, fans, compressors, and conveyors, benefit from the IGBT's high efficiency and power-handling capabilities. IGBTs are commonly used in variable-speed drives to precisely control the speed and torque of motors, optimizing energy consumption and improving performance.
-Inverters:
IGBTs are a key component in inverters, which are used in a wide range of applications, including solar power systems, uninterruptible power supplies (UPS), wind power generation, and electric vehicle (EV) charging stations. IGBTs help convert DC (direct current) power to AC (alternating current) power efficiently, making them essential for renewable energy systems.
-Electric Vehicles (EVs):
In electric vehicles, IGBTs are used in motor drives, power inverters, and battery management systems to efficiently manage power flow between the battery, motor, and other components. They help improve the performance, efficiency, and range of EVs, ensuring reliable operation in various driving conditions.
Renewable Energy Systems:
In solar inverters, wind turbine converters, and energy storage systems, IGBTs are employed to manage the flow of energy between renewable sources, the grid, and storage devices. Their ability to efficiently convert power ensures maximum energy harvesting and integration into the grid.
-Induction Heating:
Induction heating systems rely on IGBTs to generate high-frequency power for processes such as metal hardening, brazing, and cooking. The IGBT’s fast switching and efficient power handling make it ideal for applications where precise control over heating is necessary.
-HVDC (High Voltage Direct Current) Systems:
IGBTs are widely used in HVDC power transmission systems to convert high-voltage DC into AC, enabling the efficient transmission of power over long distances. They also play a role in HVDC back-to-back systems, where power can be transferred between different grids operating at different frequencies.
-Uninterruptible Power Supplies (UPS):
In UPS systems, IGBTs help manage the conversion between DC and AC power, providing backup power in the event of an electrical outage. Their ability to handle high power efficiently and with low switching losses is essential for ensuring a reliable power supply to critical systems.
-Welding Inverters:
In welding inverters, IGBTs are used to control the output power and voltage to the welding arc. Their fast switching speed and ability to handle large currents make them ideal for high-precision welding applications.
-Power Conversion Systems:
IGBTs are commonly used in power conversion systems where AC power must be converted to DC or vice versa. They are crucial for applications like AC-to-DC rectifiers and DC-to-AC inverters found in industrial power supplies, electric grid systems, and renewable energy setups.
- High Efficiency: IGBTs are highly efficient in converting and controlling power, which reduces energy loss and increases system performance in applications like motor drives, solar power systems, and electric vehicles.
- Compact Design: Due to their ability to handle high power with low losses, IGBTs help reduce the size of power conversion systems, leading to more compact designs in power electronics and electric machinery.
- Thermal Management: The thermal stability of IGBTs allows them to function in a wide range of temperatures, making them reliable in both low and high-temperature environments.
- Fast Switching and Control: IGBTs can switch on and off rapidly, allowing for high-frequency operation in motor control systems, inverters, and power supplies.
- Versatility: IGBTs are highly versatile and can be used in a wide variety of applications, including industrial motor drives, solar energy systems, electric vehicles, and HVDC power transmission, making them essential in modern power electronics.
- Reliable Power Control: The combination of MOSFET and BJT properties allows IGBTs to control high voltages and currents effectively, providing reliable performance for critical power systems.
- Cost-Effectiveness: IGBTs offer a balance between performance, size, and cost. While they might not be the cheapest semiconductor device available, their efficiency and versatility often make them more cost-effective in the long run compared to other devices.
The IGBT (Insulated Gate Bipolar Transistor) is a critical component in power electronics, known for its ability to efficiently handle high voltages and currents while providing low switching losses, high efficiency, and fast switching speeds. IGBTs are widely used in applications such as motor control, inverters, electric vehicles, renewable energy systems, and industrial machinery. By combining the best characteristics of MOSFETs and BJTs, IGBTs provide an optimal solution for modern power conversion systems, making them essential for achieving high performance, compact designs, and energy efficiency in a wide range of industries.
